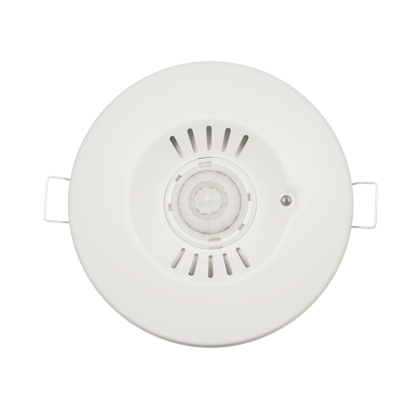

The PIR sensor on the product has a moving lens (mechanical adjustment) and a shade ring allow users to easily customize the coverage area and detection range

• RGB LED can be used to indicate movements or/and one of the measurements value

• Mixed light measurement suitable for fluorescent (FUPUESL), halogen/incandescent lamps and LEDs

• KNX programming button of the product is under the front cover for easy access

• Product can be flush mounted installed in ceilings with clamps

• Ceiling installation is also possible with surface-mounted box

• 8 independent channels can be used for presence or/and brightness dependent control for lighting, HVAC control etc...

• Test mode for checking function and detection area

• All sensors measurements can be calibrated before ETS programming by parameters or after ETS programming by communication objects

• Alarm function for measurements

• Presence dependent channels can work in parallel (Master/ Slave or Master/Master)

• Short presence function reduces the time delay when device detects movement briefly

• Brightness switching value or set point value can be set in lux before ETS programming by parameters or after ETS programming by communication objects

• Channel’s presence and brightness sources can be from internal or/and external sensors

• Independent lock function for each channel

• Channels can be programmed to work with manual switching/dimming (by push buttons for example).

• Participation to scenes
