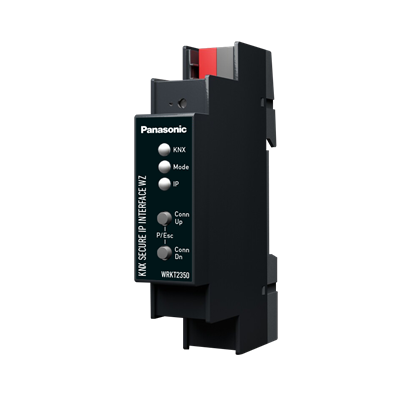

Panasonic KNX Secure IP Interface provides secure IP-based access to KNX systems, enabling safe remote management, programming, and visualization. This compact device occupies just 1 module (18 mm) and draws power directly from the KNX line, simplifying panel wiring and installation. Supporting KNXnet/IP Security (AES-128), it encrypts all communications, ensuring safe tunneling connections. Up to 8 simultaneous tunnel connections are supported, offering high performance even in demanding applications.
Technical Specifications:
Security: KNXnet/IP Security (AES-128) encrypted tunnel connections
Capacity: Supports up to 8 parallel KNXnet/IP tunnels simultaneously
Access: Secure ETS® programming and system management via LAN or Internet
Protocols Supported: ARP, ICMP, IGMP, UDP/IP, TCP/IP, DHCP, Auto IP
Power: No external adapter required; powered by KNX bus
Physical: Ultra-compact DIN rail design, 1 module (18 mm) width
Indicators: Local LEDs and buttons for operation, IP, and KNX communication status
Use Cases:
Remote Management: System integrators securely access projects over the Internet for programming, configuration, and maintenance
Visualization Integration: Safe integration of third-party SCADA, BMS, or mobile apps with KNX systems
Flexible Access: Multiple users can securely access the KNX system simultaneously over the building’s local network (LAN)
Product Code:
WRKT23505NC
